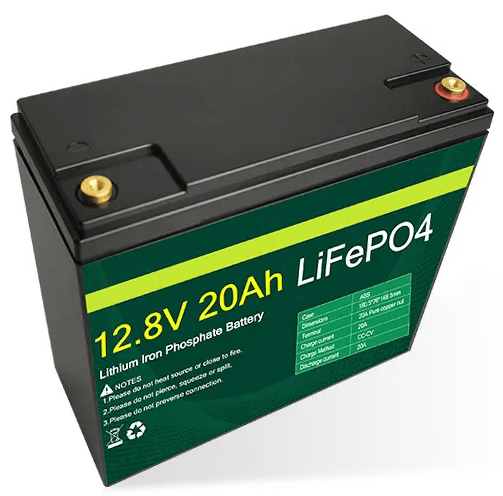

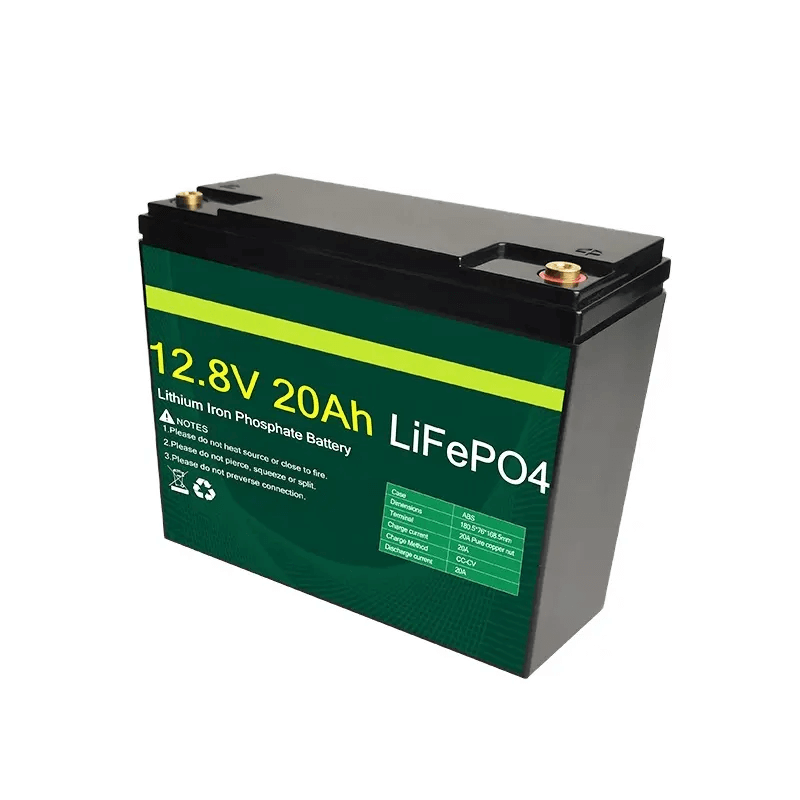

Lifepo4 12v 10ah オートバイスターターバッテリー

2023-05-24 09:47

仕様

項目	VALUE
公称電圧（V）	12.8V
Nominal Capacity (Ah)	20Ah
Dimension (L*W*H)mm	181*76*170
Battery Case Type	Waterproof ABS Case IP56
Energy Wh	256Wh
Charge Voltage max (V)	14.6V
Charge current Max (AMPS)	4A standard, max 10A
Discharge Cut-off Voltage(V)	10.0 V
Discharge Current max (AMPS)	10Amps max continuous
Battery Material	リン酸鉄リチウム電池
Battery Cell Type	Lifepo4 battery cell 3.2V 6000mAh ,Cylindrical lifepo4 cell
Composed Way	4S3P Lifepo4 battery pack 12V 10Ah
サイクル寿命	2500 times at 85%dod5000 times at 65% dod 8000 times at 40% dod
Storage Temperature (℃）	0-45℃
Work Temperature (℃）	-20℃-60℃
Weight (KG)	Net 2.2KG, gross 2.5Kgs
OEM Label Brand /Package Orders	Acceptable , OEM Label: MOQ 100PCS OEM Package: MOQ 100PCS



Key features

1. Vehicle-grade craft, there are multiple isolation and fixing inside the battery pack, which is conducive to heat dissipation
2. The shell is anti-aging, anti-corrosion, fireproof and waterproof
3.  It replaces lead-acid batteries, which is 50% lighter
4.  Wide temperature operation
5.  Safe and reliable, no explosion.
6. Variety of protections, overcharge, over discharge, over current, over-temperature protection
7.  Easy operation, plug and play.

応用

* LED light system
* Tourist car battery
* EV bus battery
* Car battery
* electric bus battery
* Solar battery / solar panel battery
* -Portable VTR/TV, tape recorders, radios, etc.
* -Power tools, lawn mowers and vacuum cleaners
* -Cameras and photographic equipment
* -Portable measuring equipment
* -Various power toys and recreational equipment
* -Uninterruptible Power Supply
* -Communications and electric equipment
* -Emergency lighting equipment

* -Various power toys and recreational equipment
* -Uninterruptible Power Supply
* -Communications and electric equipment
* -Emergency lighting equipment

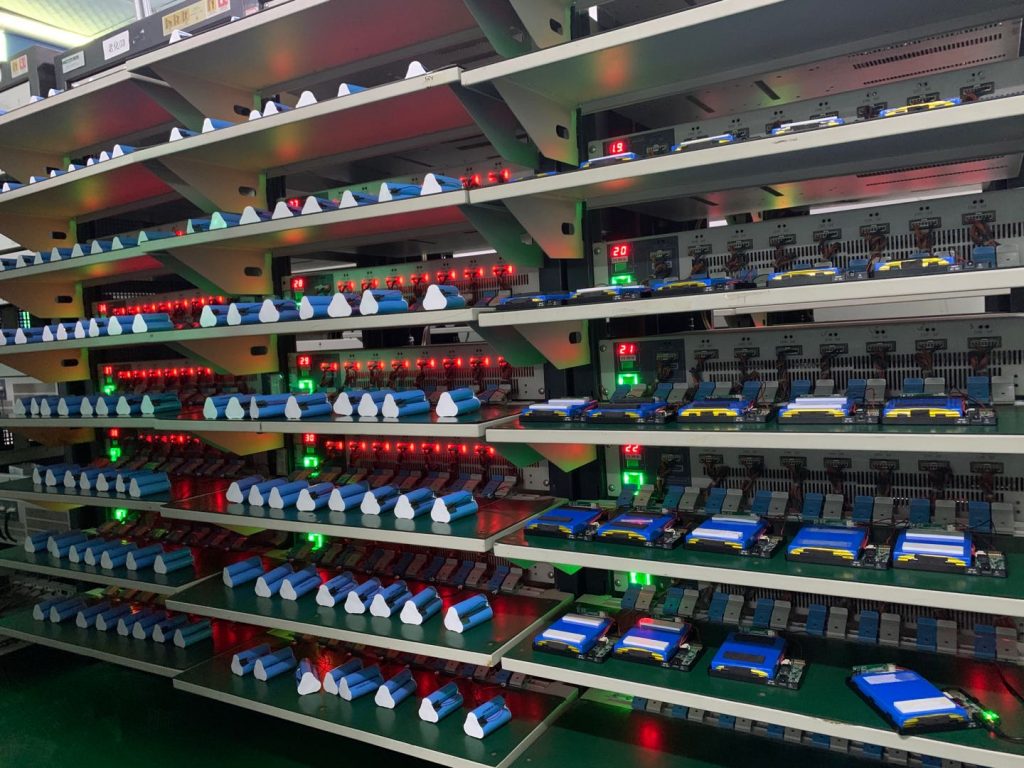

私たちの工場



よくある質問

Q：どのように支払う必要がありますか？どのような支払い方法を受け入れますか？
A：T / T、Paypal、Western Union、TradingAssuranceは受け入れられます。

Q：サンプルの注文は受け入れられますか？
A：はい、ほとんどのバッテリーについて、品質をテストするためのサンプル注文は合理的で許容範囲内です。

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from famous brands. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: What is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For those that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: We guarantee the quality before the item is shipped. You can enjoy 30-day free refund, 4-month free replacement, and lifetime maintenance service from the date of delivery. Any damages caused by improper use are not covered by our warranty.
