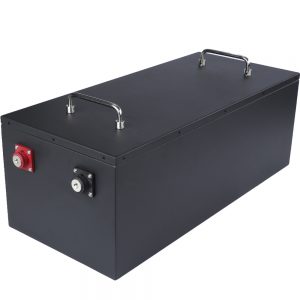

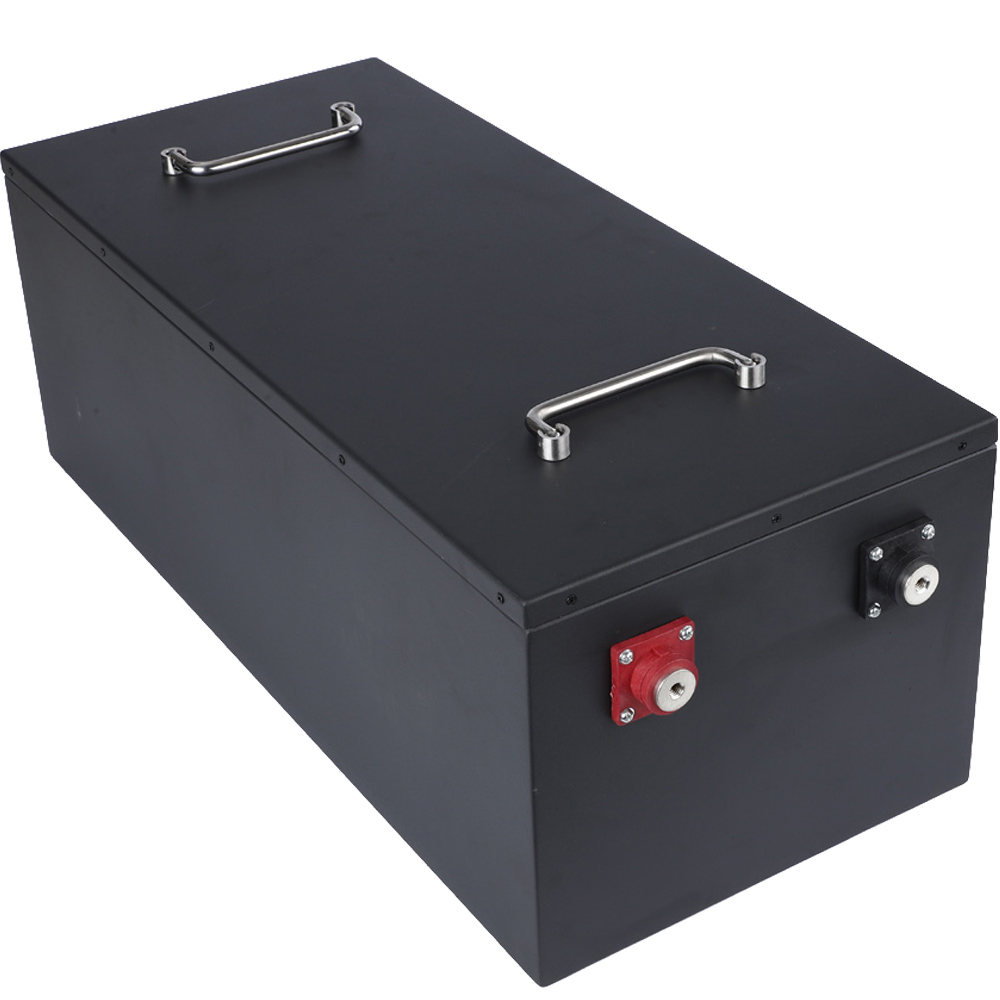

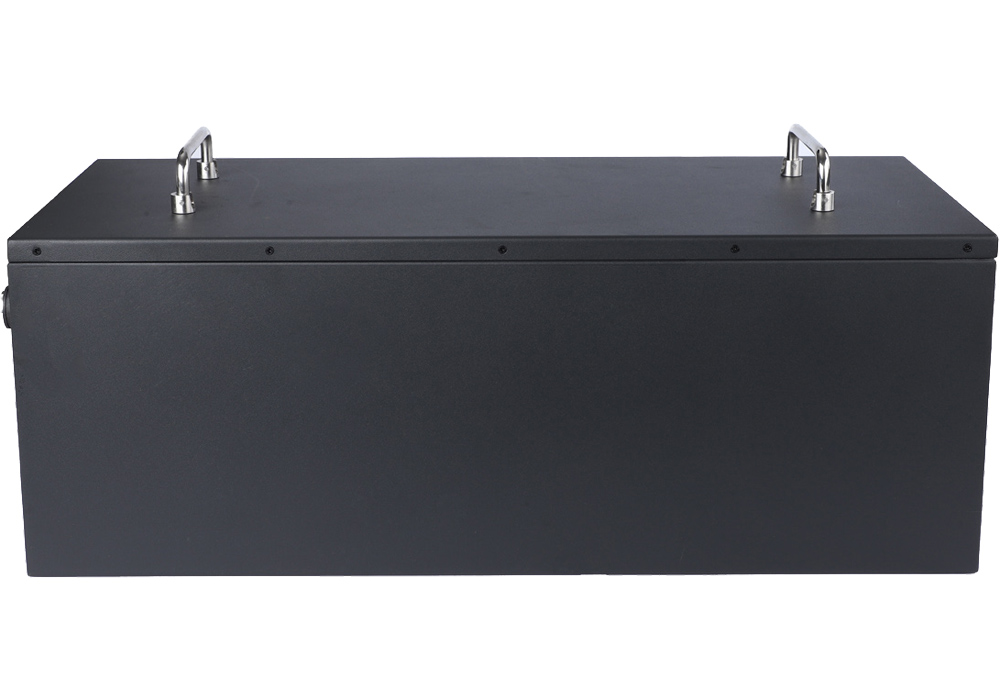

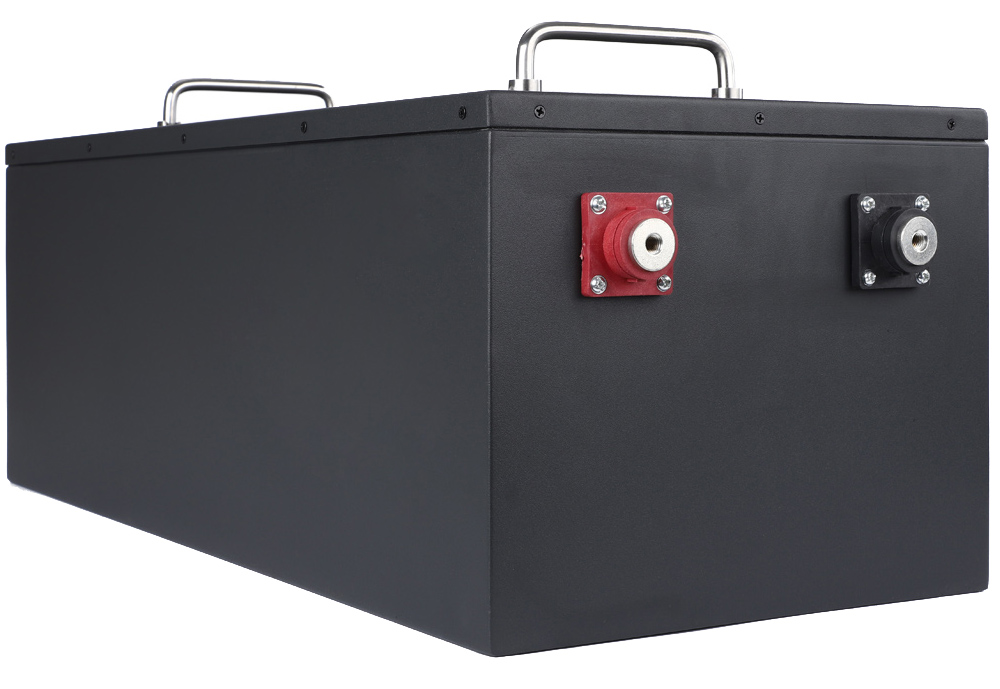

Deep Cycle 36V Battery Pack 12S1P LFP Lithium ion 36V Battery Pack Rickshaw EV RV AGV E-bike Lifepo4 36V 100Ah Batterie

2021-02-05 02:13

製品パラメンター
バッテリーパック
仕様
リマーク
Model No.
AIN36100
/
電池のタイプ
36V LiFEPO4 battery
/
公称電圧
36V / 38.4Volt
customizable Voltage
Charge Cut-off (BMS protection)
45volt±0.35volt
/
Discharge Cut-off (BMS protection)
27.6volt±1.2volt
/
Standard / Nominal Capacity
105Ah
customizable
Approx. Weight
29kg
/
Pack Type
12S1P
customizable
Reserve Minutes @0.2C 25℃ /
300minutes
/
動作電圧
27.6volt~43.8volt
customizable
ピーク放電電流
300A±25A within 5second
customizable
インピーダンス
≤10mΩ
/
Built-in Cell Model
Prismatic @ 100Ah/50Ah/300Ah
customizable
充電温度
32(℉)~122(℉)
/
排出温度
-4(℉)~140(℉)
/
サイクル寿命
4000cycle (80%DOD)
/
Max Cont. discharge current
100A
customizable
チャージ方法
CC / CV
customizable
Built-in BMS system
はい
/
BMS Protection Type
 Over-Charge, Over-Dishcarge, Over-Voltage, Over-Current, Short-Circuit, Auto-reset
/
BMS Balance Type
Active Auto-Balancing
/
外形寸法
53*22*17cm
customizable
Connection Type
 Modular Pack welding or laser spot welding
/
BMS
Balanced Current ( BMS )
20~30mA
/
Balanced voltage
 3.6volt
/
Over Charge Protection
3.75±0.0.3v / cell
/
Release Voltage for overcharge
3.60±0.05v
/
Rated Charge Current Protection
100A
customizable
Detection delay (over-Charge)
1000mS
/
Short circuit trigger condition
 external load short circuit
/
Detection delay (short-circuit)
200uS
/
Over-Discharge Cut-Off Voltage
2.1V±0.1V / cell
/
Over-Discharge Release Voltage
2.3V±0.1v
/
Discharge  protection current
300 (10mS)
/
Rated Discharge Current
≤100A
customizable
Release condition (short circuit & over discharge)
Disconnect Load & Charge Activation
/
Detection delay (over-discharge )
1000mS
/
Communication interface
 Bluehost / RS485 / RS232 GPS protocol port for Choice
customizable
Temperature control protection
Discharge protection: 167 (℉)±40 (℉)
/
作業温度
-4(℉) ~ 176(℉)
/
Over Heat Temperature Protection(Charge&Dishcarge)
167(℉)±41(℉)
/
High temperature release value(Charge&Dishcarge)
127.4(℉)
/
LEDインジケータ
Display Value
Voltage / Capacity percent / Work Temperature
customizable
証書
CE, MSDS, CB-SG, UN38, UL1642
customizable
Outside Battery Box
Outside Protection Box
Stainless steel outer box
Available ABS BOX Series
IP Level
IP65
customizable
Aging
Lead time
5-15days normally
rely on the order quantity
Shipment Time
7-12days by express, 15~35days by Air, sea and rail transportation
/
Quality Assurance
保証
3 year / 36 months
/

Product advantages

◆ Preferred supply high-quality batteries, Exceptional voltage stability
◆ >4000 Cycles at 80% depth of discharge to ensure long cycle life
◆ Rugged mechanical design with Modular design or laser spot welding to group
◆ Suitable for high-power power products
◆ Automatic system cell Charging balancing, Maintenance-free & No hydrogen generation or gassing
◆ Direct replacement for lead-acid batteries, <70% the weight of similarly sized SLA batteries
◆ Support fast charging & 100% deep cycle
◆ High discharge rate, sustainable discharge 300A @ 3~5 second
◆ Low power consumption design, long time standby
◆ Smart LCD Auto-Display Module for Capacity Rate and Voltage / Temperature display
◆ BMS powerful intelligent protection function and automatic short circuit & activation protection function
◆ IP56 water and dust resistant Group 31 case
◆ Stainless steel outer box-compression resistant, shock resistant, durable
◆ Environmentally friendly design and quality assurance in compliance with RoHS MSDS UN38 UL CB requirements
◆ Stock / Customize available for quick delivery in the US /UK / DE / FR or worldwide

用途

1) Energy Storage: UPS, backup, power station.

2) EV: Golf trolleys, Electric scooters.

3) Solar Energy Storage Systems, Wind Energy Storage,Solar/Storage Home System, Solar Street Light.

4)電気通信基地局。

5) Marine Boat.

6) UPS (Uninterrupted Power Supply).

7) General Energy Storage (Such as Back-up Power, Miner's lamp, portable power supply, digital products, etc.)

関連するLFPバッテリー

私たちの工場



梱包と配送

よくある質問
Q1:あなたは工場ですか?
A1: Yes, we are the original factory, specializing in NiMH battery and lithium battery for more than 10 years.

Q2:サンプルを注文できますか?
A2:はい、サンプルの注文を受けて品質をテストおよびチェックします。必要に応じてバッテリーを製造できます。

Q3:MOQはありますか?
A3:制限はありませんが、注文するほど価格が高くなります。

Q4:納期はいつですか?
A4:通常、支払いが確認されてから3〜5週間後、正確な注文数量が適用されます。

Q5:通常どの配送方法を使用しますか?
A5:一般的に、急行または空気による少量。海を介した大量注文数量。

Q6:どのようなパッキングを提供しますか。
A6: Standard export carton or wooden case according to battery size and weight, the package will be strong enough for long-distance transport.

私たちはあなたとの長期的な協力関係を確立することを心から楽しみにしています。ご不明な点がございましたら、お気軽にお問い合わせください!

注:すべての製品が小売をサポートしているわけではありません。製品の価格についてはお問い合わせください。
