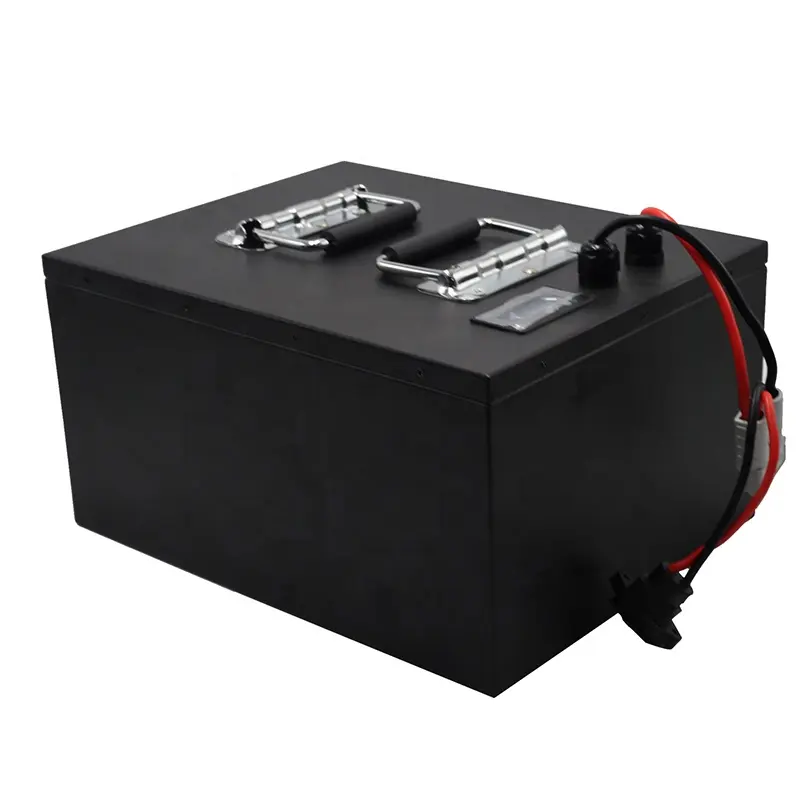

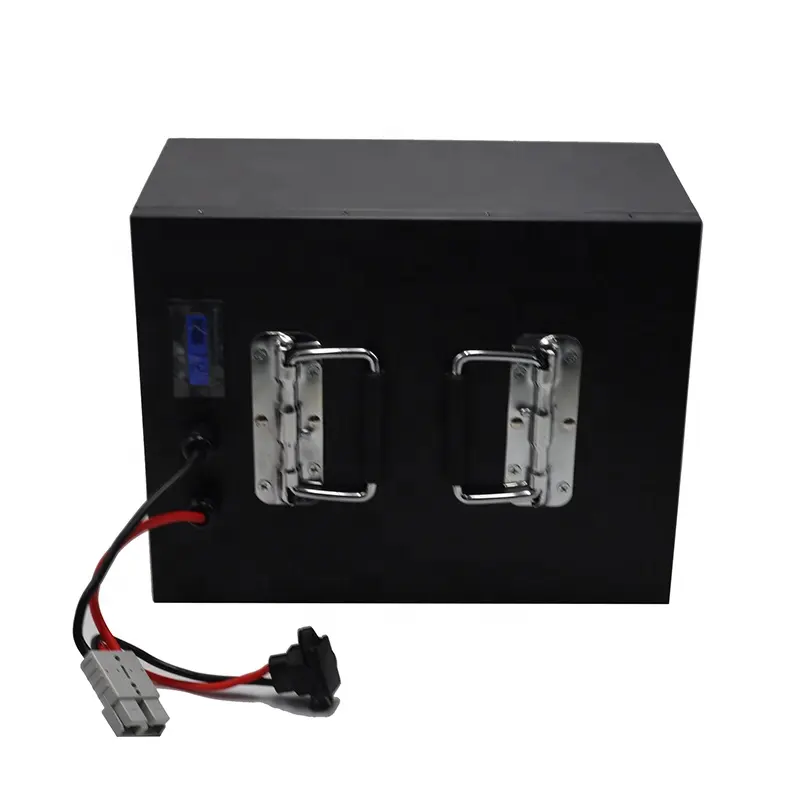

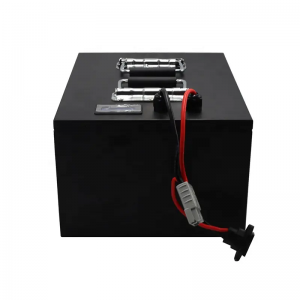

EV 車用のカスタマイズされた LiFePO4 バッテリー パック 72v 60ah 電気自動車バッテリー リチウム イオン パック

2023-06-06 02:13

仕様

ブランド名	オールインワン
型番	AIN7260
保証	5年
公称電圧	76.8V
わずかな容量	[email protected]/customize
エネルギー	4416Wh
内部抵抗	≤50mΩ
サイクルライフ	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
自己放電	25℃で月額3.5％以下
最大充電電圧	87.6 V
充電モード	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
充電電流	30A
最大充電電流	60A
放電電流	30A
Max. discharge Continuous Current	60A
最大パルス電流	120A(<3S）
遮断電圧の放電	60V
充電温度	0℃〜45℃（32℉〜113℉）@ 60±25％相対湿度
排出温度	-20℃〜60℃（-4℉〜140℉）@ 60±25％相対湿度
保存温度	0℃〜45℃（32℉〜113℉）@ 60±25％相対湿度
耐水性	IP55
セルとフォーマット	LFP  60AH 24S1P/customize
ケーシング	Metal Case
寸法（L * W * H * TH）	カスタマイズ
重量	50kg
ターミナル	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
充電方法	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
証書	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

リマインダー

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

応用

私たちの工場

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

梱包と配送

梱包

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

運送

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



よくある質問

Q：どのように支払う必要がありますか？どのような支払い方法を受け入れますか？
A: T/T, PayPal, Western Union.

Q：サンプルの注文は受け入れられますか？
A：はい、ほとんどのバッテリーについて、品質をテストするためのサンプル注文は合理的で許容範囲内です。

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2.バッテリーの膨らみ/溶接などの損傷の場合、充電によってBMSが保護されていないバッテリーパック。
