ラックリチウムイオン電池バッテリー 48V 100Ah 200Ah 5KWH 10KWH 太陽光発電蓄電池パック

2023-07-27 06:25

仕様

型番	4850	48100	48150	48200
公称電圧	48V/51.2V(optional)
容量	50	100	150	200
エネルギー	2.4KWH	5KWH	7KWH	10KWH
内部抵抗	≤60mΩ
サイクルライフ	≥5000cycles@80%DOD,25℃，0.5C ≥4000cycles@80%DOD,40℃，0.5C
設計寿命	≥10 years
充電カットオフ電圧	53V ±0.5V(15S);56.0V±0.5V(16S);
Max. Continuous Work Current	50A	100A	100A/150A	100A/150A/200A
放電カットオフ電圧	45V±1.0V(15S);48V±1.0V(16S);
充電温度	0℃~60℃ (Under 0℃ extra heating mechanism)
排出温度	-20℃~60℃ (Under 0℃work with reduced capacity)
保存温度	-40℃~55℃ @ 60%±25% relative humidity
重量	28	50	70	95
Dimensions(mm)	520*590*180mm 520*480*220mm	520*500*270mm 520*500*310mm	520*600*270mm 520*600*310mm	520*730*270mm 520*730*310mm
Protocol (optional)	RS232-PC,RS485(B)-PC RS485(A)-Inverter,Can bus-Inverter
認証	UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

LFP battery technology without cobalt
Battery equalizers to balance voltage gaps among batteries

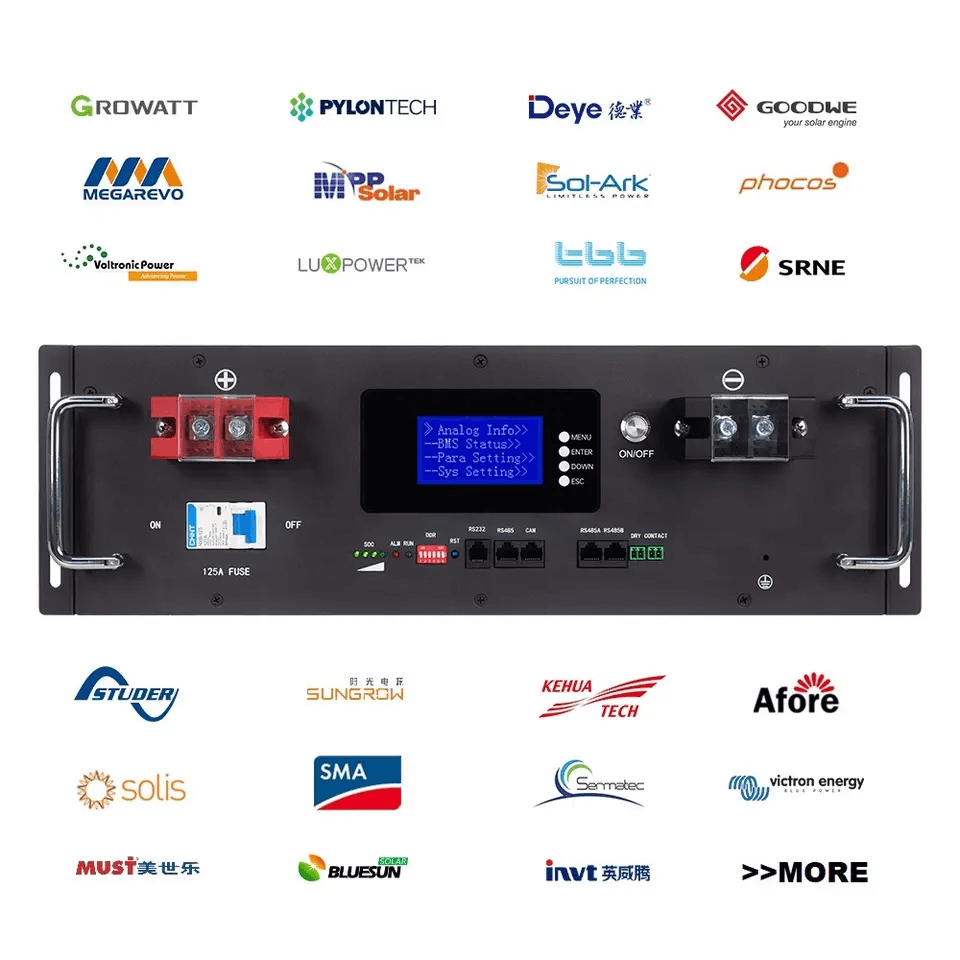

Compatible with more than 20 brands inverters
Golf cart & electric motorcycle Low speed power vehicle battery support communication, GPS tracking etc customized function

応用

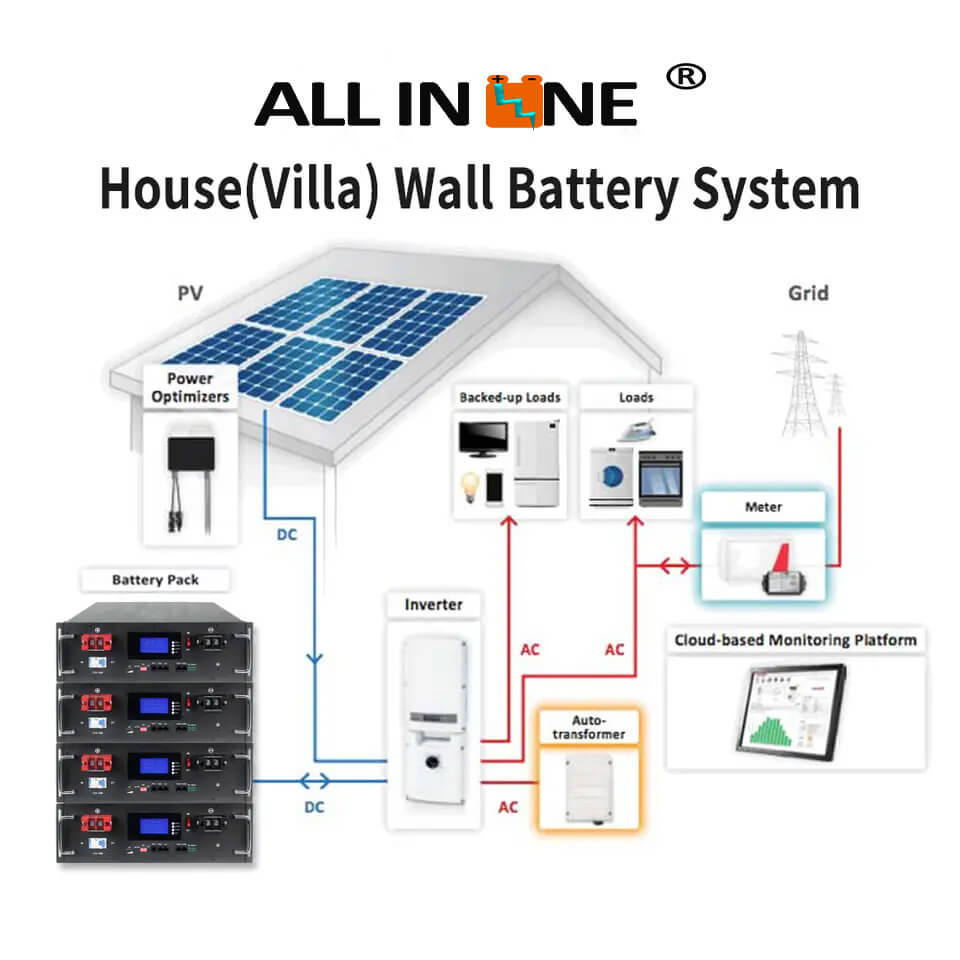

1.エネルギー貯蔵
-- 太陽光風力発電システム / 都市グリッド (オン/オフ) / コミュニティと家族
2.バックアップシステムとUPS
--Telecommute Base / CATV system / Computer Server Center / Medical Instrument / Military Equipment
3.その他のアプリケーション
--Security and Electronics / Mobile POS, Mining Light / Torch / LED Light / Emergency Light
--RV Motor home /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric
bicycle
--LED Backup / Engine Starting Battery,etc

私たちの工場

Why choose ALL IN ONE as your supplier and partner?
* Competitive factory direct price with high quality
* Small MOQ
* Spot Supply for samples and drop shipping, bulk lead time is 15-20 working days
* DDP DDU delivery without tax and customs
* Excellent 18 hours online support from inquiry,installation,technical guide to after sales
* UN38.3, MSDS, ROHS, IEC, UL, CE, ISO9001 are certified
* Regional Customer Leads
* Professional team for OEM ODM custom service from inside to outside:
private logo, customized packaging, WIFI, Bluetooth, Communication Protocol, BMS function, high voltage or high current battery cabinet, free one stop solar energy system solution such as project design and engineer, MPPT charger, Inverter, battery racks etc.

梱包と配送

ALL IN ONE manufactures safe , grade A brand new & high performance LFP energy storage battery including 48v liFePo4 battery ; wall mounted lifepo4 lithium batteries; Cabinet type high volt/amp lithium battery lifepo4 etc; Every cell could be tracked by QR codes and strictly tested before shipping.

よくある質問

Q1:Are you manufacturer?
A1: Yes, we are manufacturer in Anhui province.

Q2:Can you provide OEM and ODM services?
A2: Yes, we can. MOQ 100pcs for OEM and ODM to make sure your prices be more competitive in the market.

Q3:How to control the quality of your products?
A3: Our company has got the ISO9001 approval. Except the chips and packaging box outsourced,
the other parts are researched and produced by ourselves. Product Quality is fully controlled by ourselves
from beginning to end. 100% QC to make sure product in high-quality and low-defect before shipping.

Q4:What kind of certificates did the products have obtained?
A4: Most of our products certified with UL, FCC, PSE, CB, CE ,
which can cover the import requirements of most countries.

Q5: How long does the delivery takes for your products ?
A5: Stock delivery: 1-3 days; OEM/ODM lead time: 30-60 days
