仕様

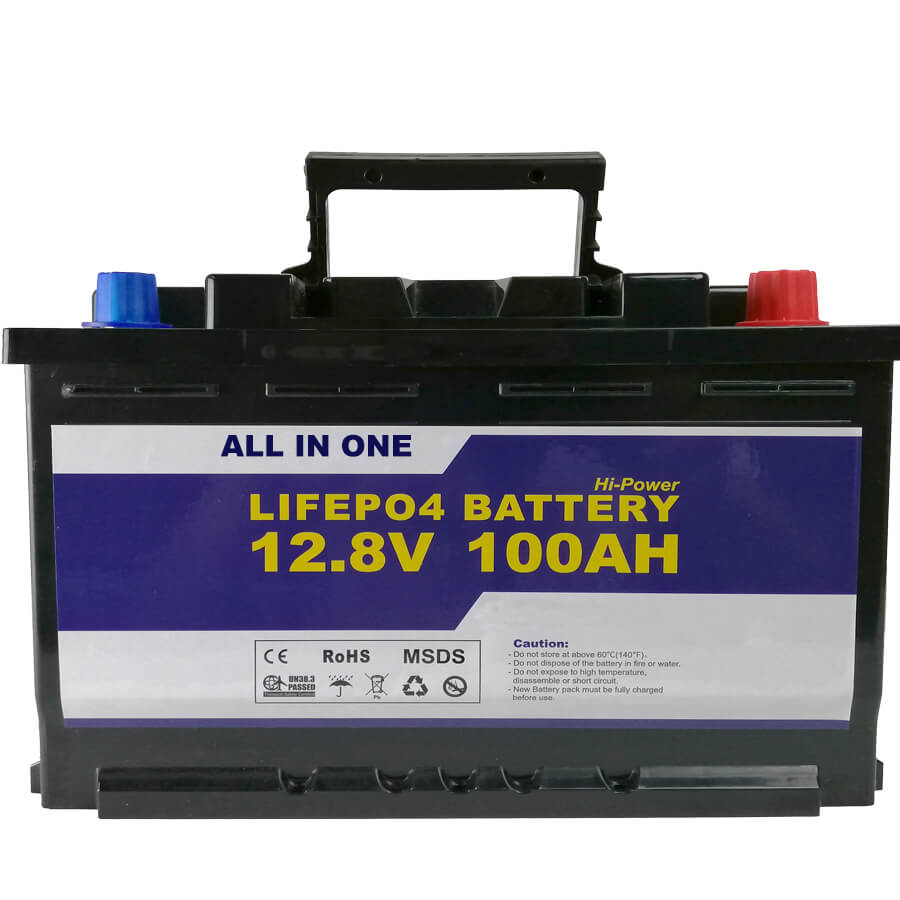

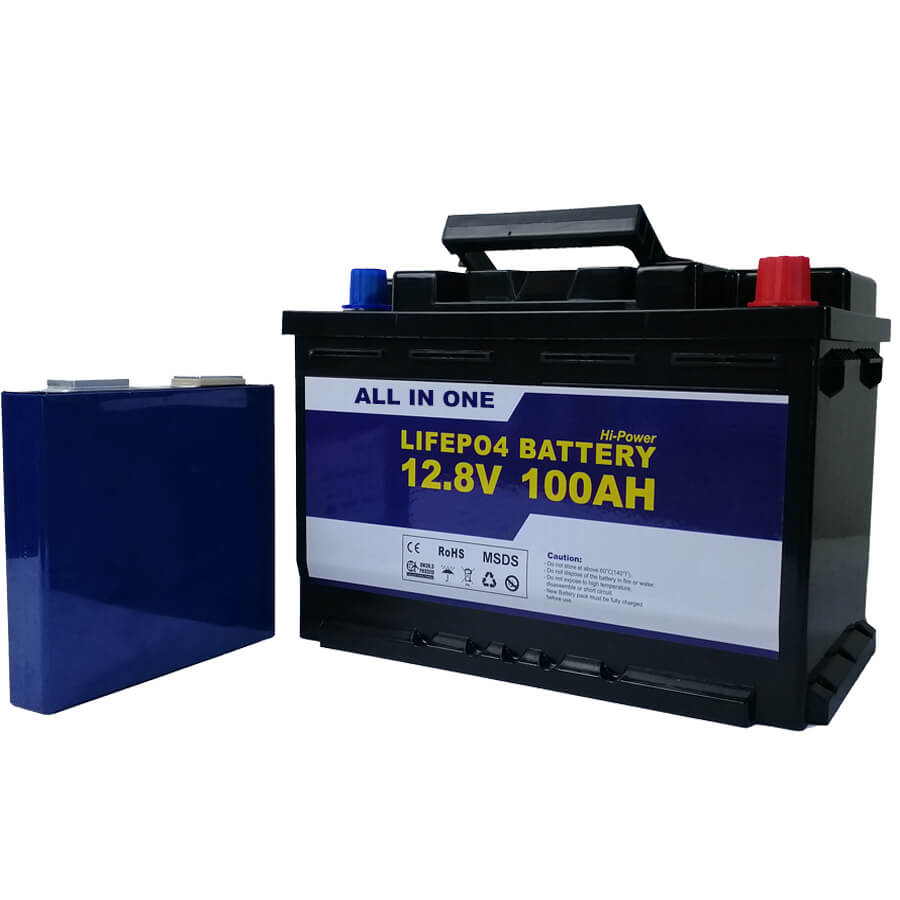

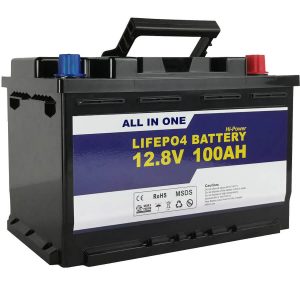

ITEMS | 12v 100ah Lifepo4 battery |
Cell ype | LiFePo4 Cells |
公称電圧 | 12.8V |
わずかな容量 | 100Ah |
保護 | BMS (without communication) |
Over Discharge Protection Voltage | 14.6V |
Over Charge Protection Voltage | 10.0V |
最大連続放電電流 | 100A |
最大パルス放電電流 | 200A (less than 5s) |
Working Temp. Range/℃ | Charge: 0℃~60℃ |
Discharge: -10℃~60℃ | |
保存温度 | Less than 1 year: -10℃~25℃ |
Less than 3 months: -10℃~40℃ | |
Less than 30 days: -10℃~45℃ | |
コネクタ | 300 pure copper connector (can be customized) |

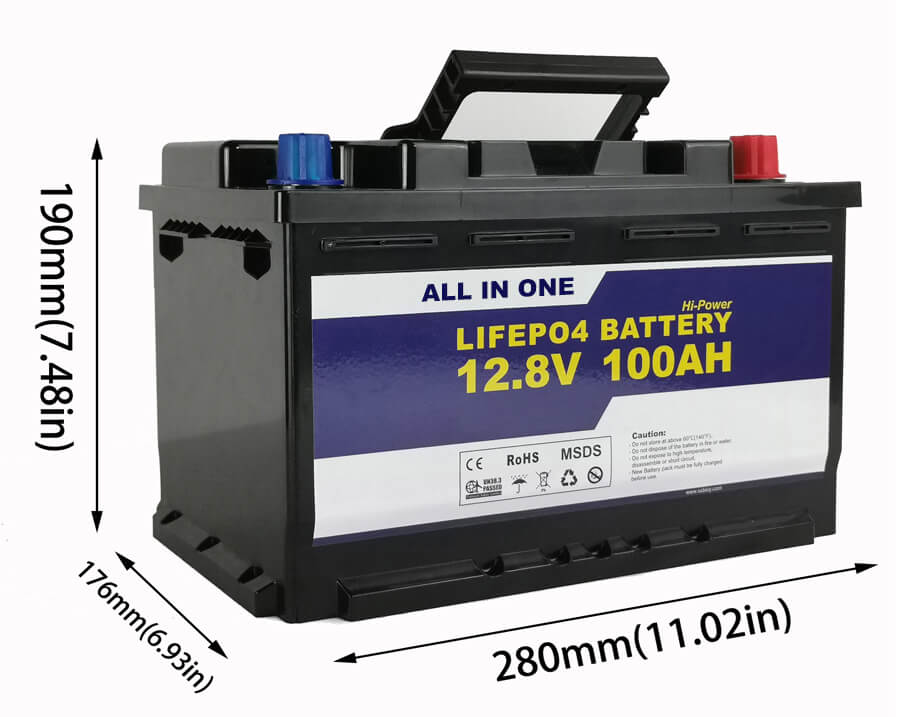

Size(L×W×H)/mm | 305*175*195 (±5) |
Battery pack Weight | 13.5 kg |
Quality Warranty | 3年 |
The data on the above is our standard matched pack. Size/max continuous discharge current/ max discharge current are adjustable based on customer's detail requirement. Different current needs different BMS, so please specify the charge/ discharge current for moudle customize, also the cost of battery pack would be slightly different based on BMS selection. |
1. A grade LiFePO4 cells with long cycle life
2. BMS built in with over charge, over discharge, over current, over temperature protection etc.
3. Sorting before batteries were assembled, to make sure every single battery pack was assembled by batteries with same Volt, capacity and resistance.
4. An idea choice for solar energy storage, electric scooter, electric boat etc.
5. Perfect to replace lead acid battery
6. Cover the battery with epoxy board before packaging, to protect battery from hit and high temperature. Epoxy board is a flame-retardant material, can prevent battery on fire or explosion.
7.All the battery pack will be cycle aging. Before we put the battery pack in to packing box or next step assembly, we charge and discharge the battery pack to text it's parameters to make sure it can work well.
8. Well trained employee,every employ will be trained for two weeks before he(or she) goes to work at production line, make sure he(or she) can complete every work program accurately. Payment Term: 30% TT in Advance, 70% balance before shipment.
Q1:テストするサンプルを入手できますか?そして、サンプル注文のリードタイムは何ですか?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.
Q2:製品の保証は何ですか?
1〜10年、私たちの製品範囲は広いので、Minimum12v 40Ah、最大2MWコンテナーエネルギー貯蔵システム、異なる製品には異なる保証があり、注文する前に確認してください。
Q3:あなたの会社の利点は何ですか。
私たちは直接工場であり、12v / 24v / 48v / 80v RVキャラバン、電気フォークリフト、ゴルフカート、マリン、AGV、鉛蓄電池の交換用の種類の高電圧、高容量、高性能バッテリーパックのカスタマイズに非常に豊富な経験を持っています、ソーラーホームエネルギーストレージ、384V / 460V / 614V航空機用トラクター、大型トラック、鉱山列車、110v / 220v DC電源、ESSキャビネット、ESSコンテナーなどは、最高の専門的な技術サポートを提供できます。
Q4:OEM / ODMを受け入れますか?
はい、ようこそ!
Q5:大量注文のリードタイムは?
一般的に言って、サンプルについての頭金と確認を受け取った後の異なるアイテムに応じて約7〜20日。
Q6:支払い条件は何ですか?
サンプルの支払いは、Paypal、ウェスタンユニオン、エスクロー、およびT / Tによる大量注文を受け入れます。
Q7:どのような証明書を提供できますか?
CE、RoHS、UN38.3、MSDSなど、IEC-62133、PSEなどが必要な場合はご相談ください。
